STM32 Handheld Game Console (Work in progress)

This summer I worked on a STM32 based handheld game console. I mainly worked on the software using the STM32 Hardware Abstraction Layer (HAL) to write drivers and middleware. This was my first experience in embedded. I wrote almost the entire thing by myself while learning about all the cool and quirky things about the C programming language. Through this, I really gained an appreciation of the C programming language, especially bitwise operators. I hope to continue doing cool stuff with embedded through the PSP Liquid Rocket Avionics team!

Skills: C, STM32, STM32 HAL, Embedded programming

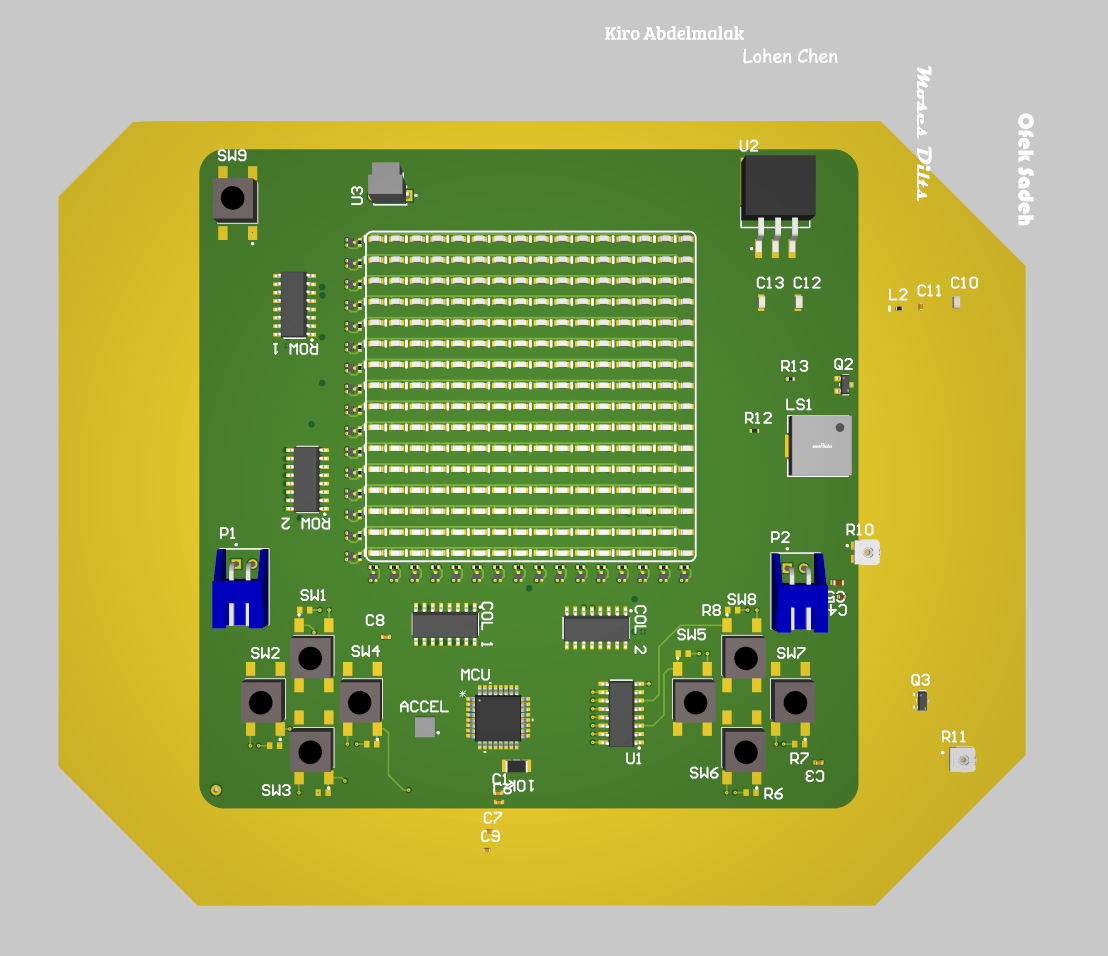

3D render of the handheld game console PCB
3D render of the board - LED matrix display, D-pad and action buttons

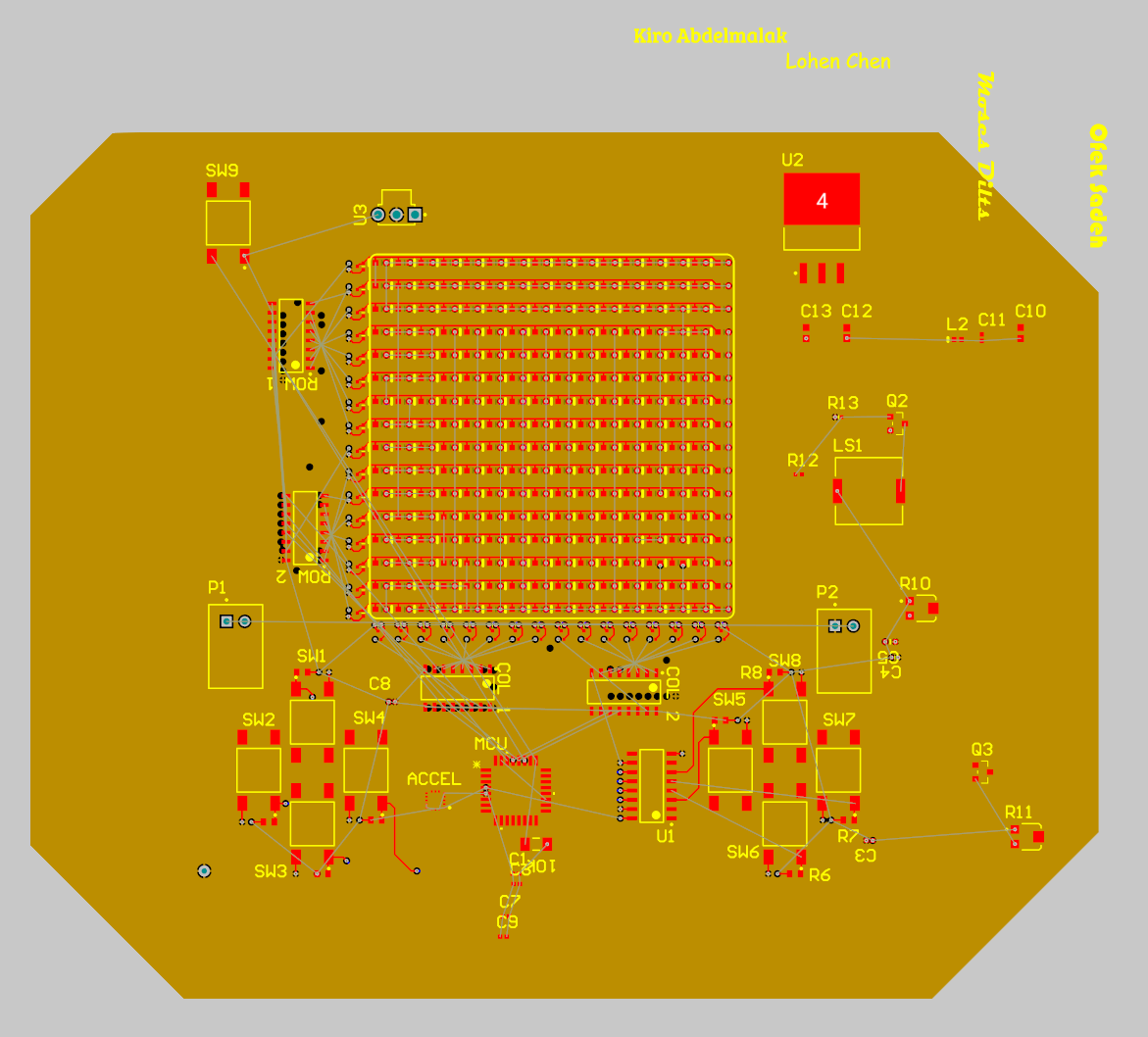

PCB layout of the console
PCB layout.

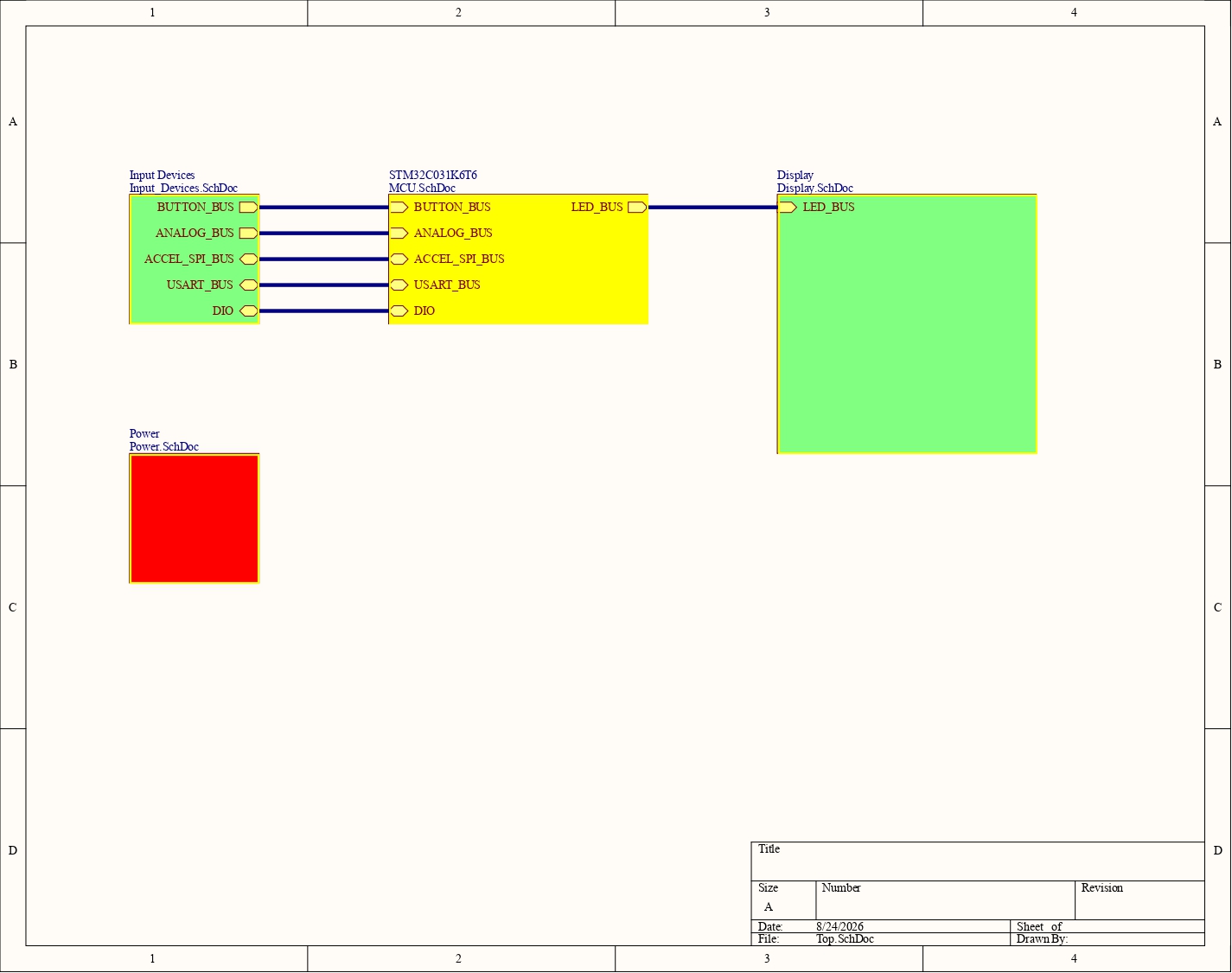

Top-level schematic overview
Top-level schematic - input devices, MCU, display, and power blocks.

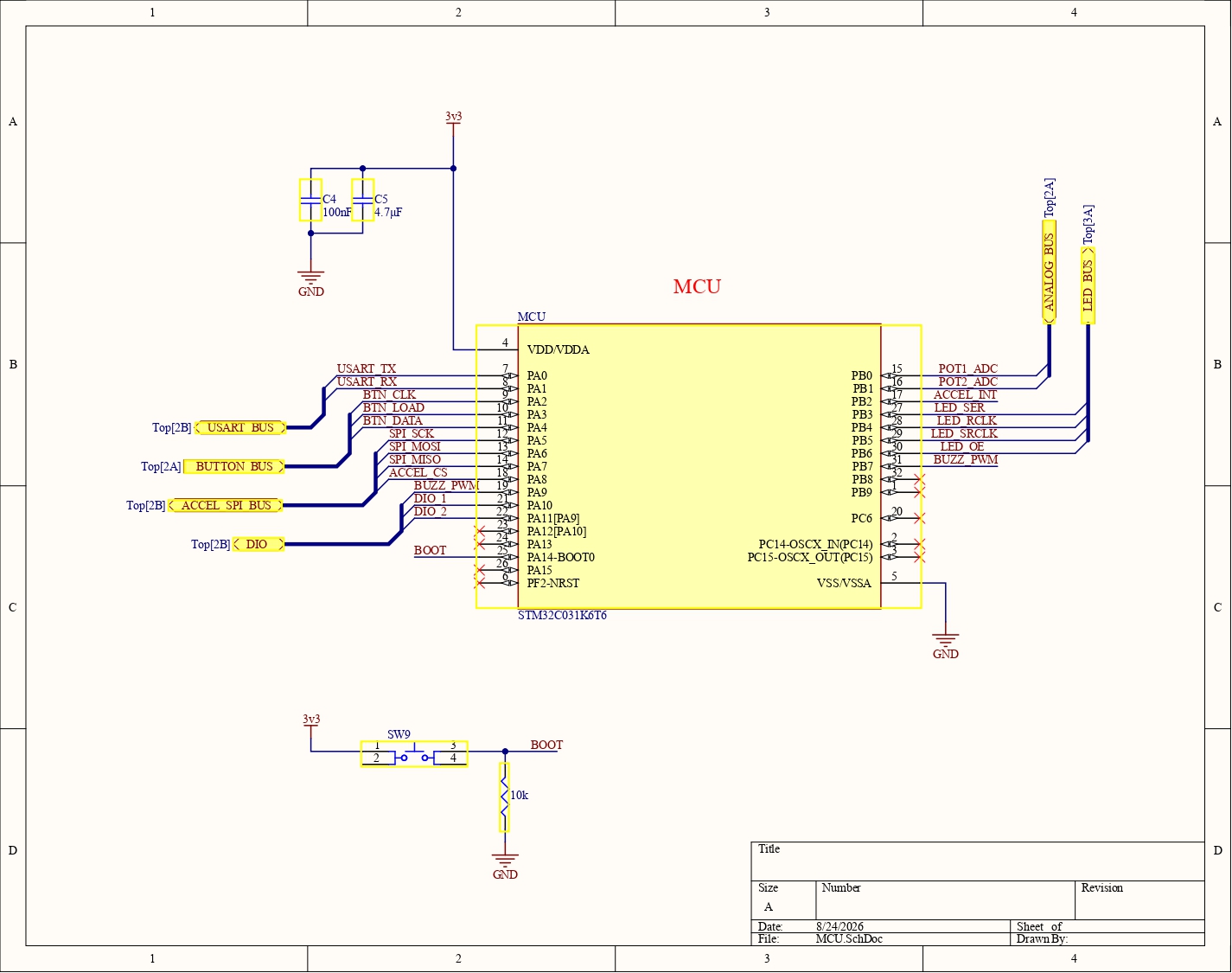

MCU schematic
MCU - STM32C031K6T6 with boot circuitry and bus breakouts.

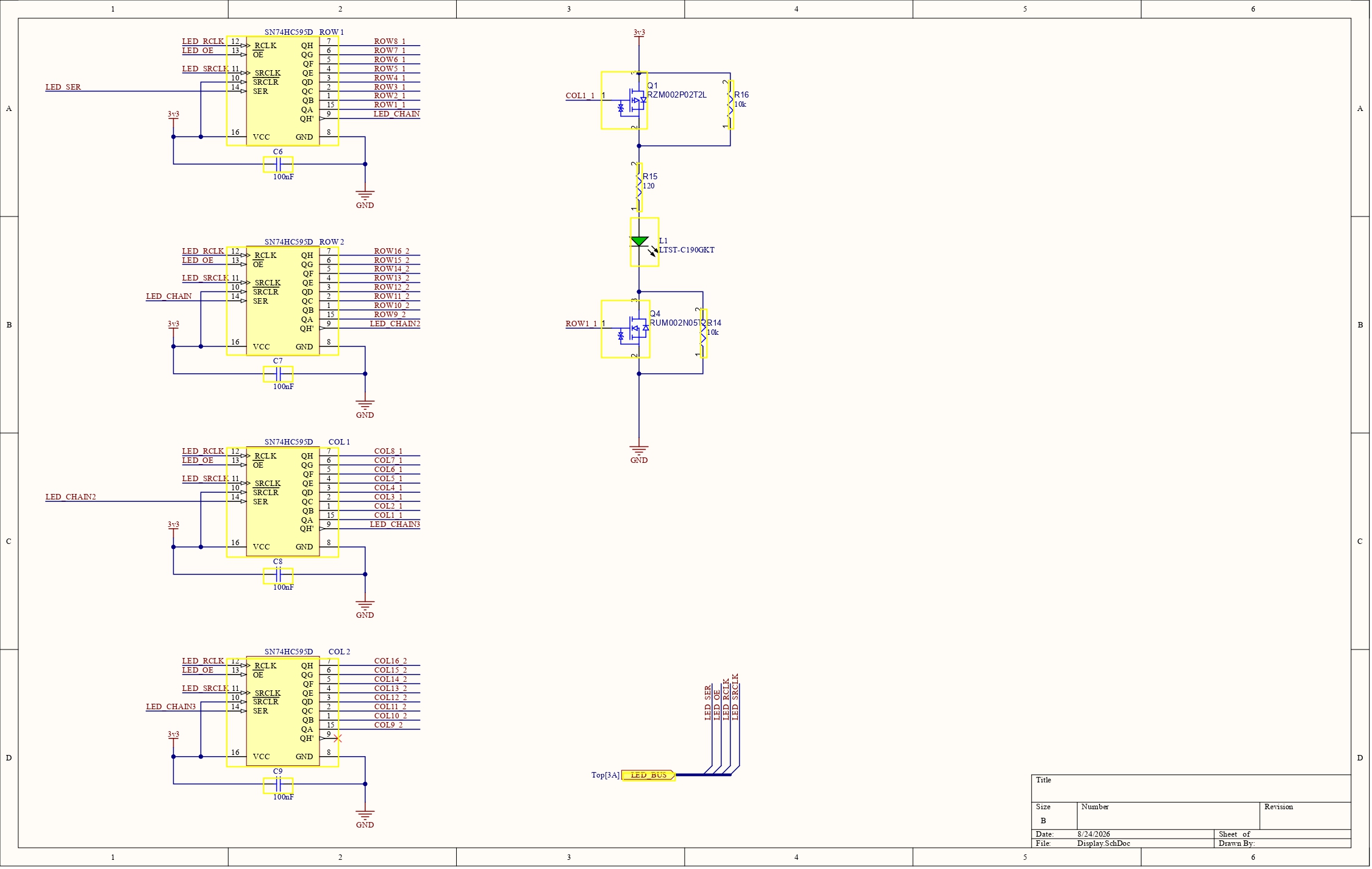

Display schematic
Display - SN74HC595 shift registers driving the LED matrix rows and columns.

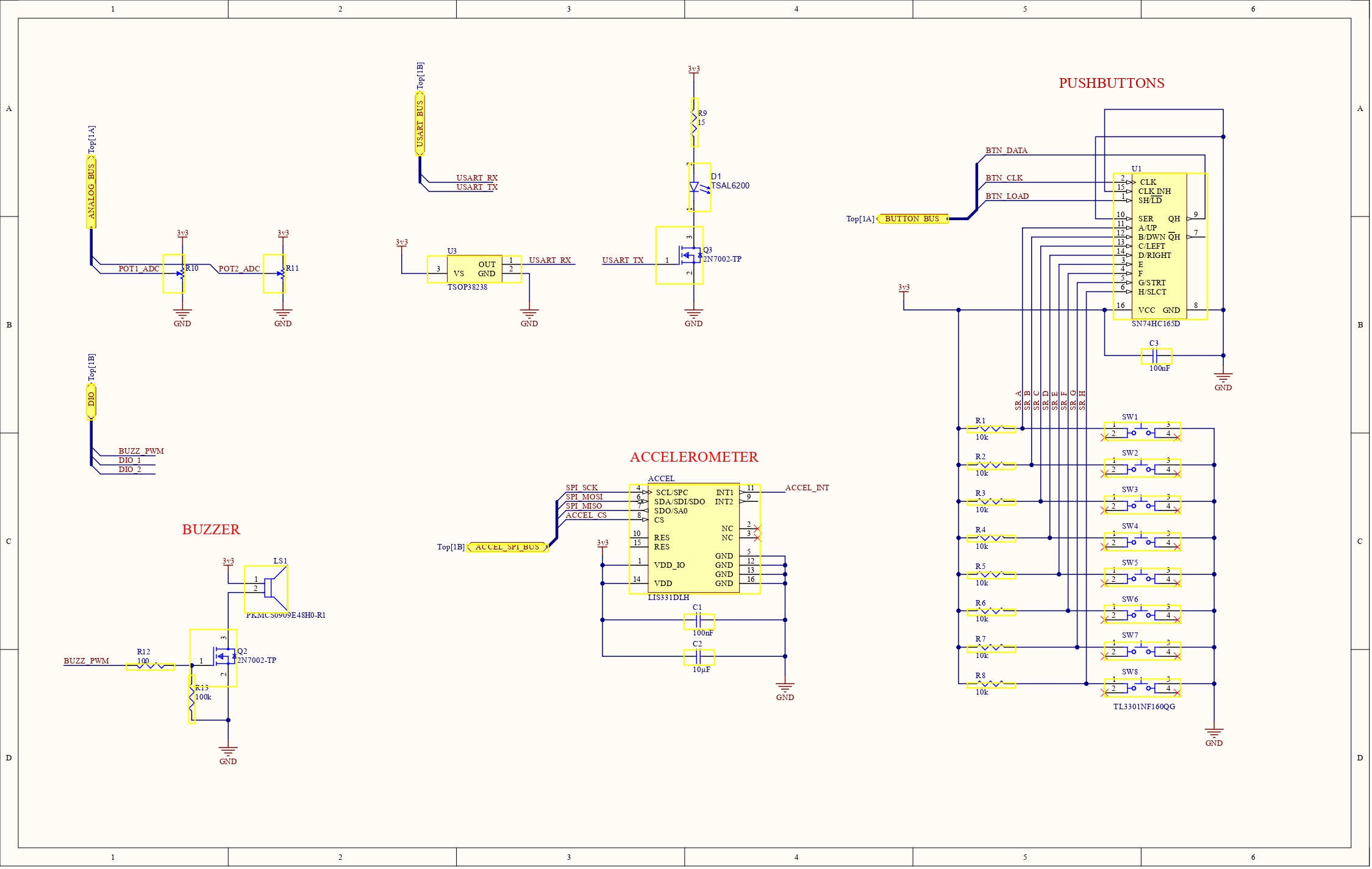

Input devices schematic
Inputs - pushbuttons on an SN74HC165 shift register, LIS331DLH accelerometer, buzzer, IR, and potentiometers.

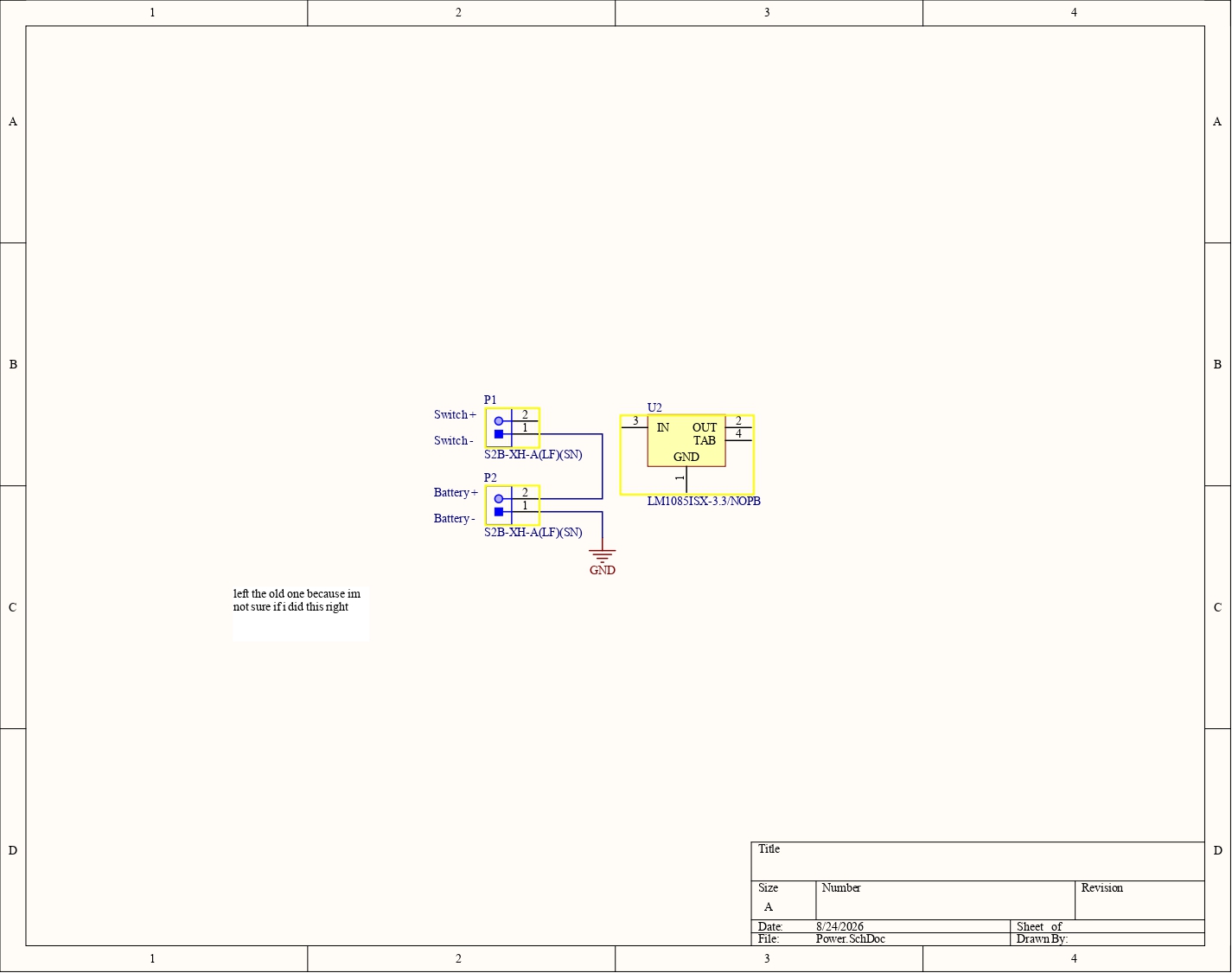

Power schematic
Power - battery and switch connectors into an LM1085 3.3 V regulator.
